Description
The ICTCS-2 is recommended for multi head machine applications.
If you have a singlehead machine CLICK HERE

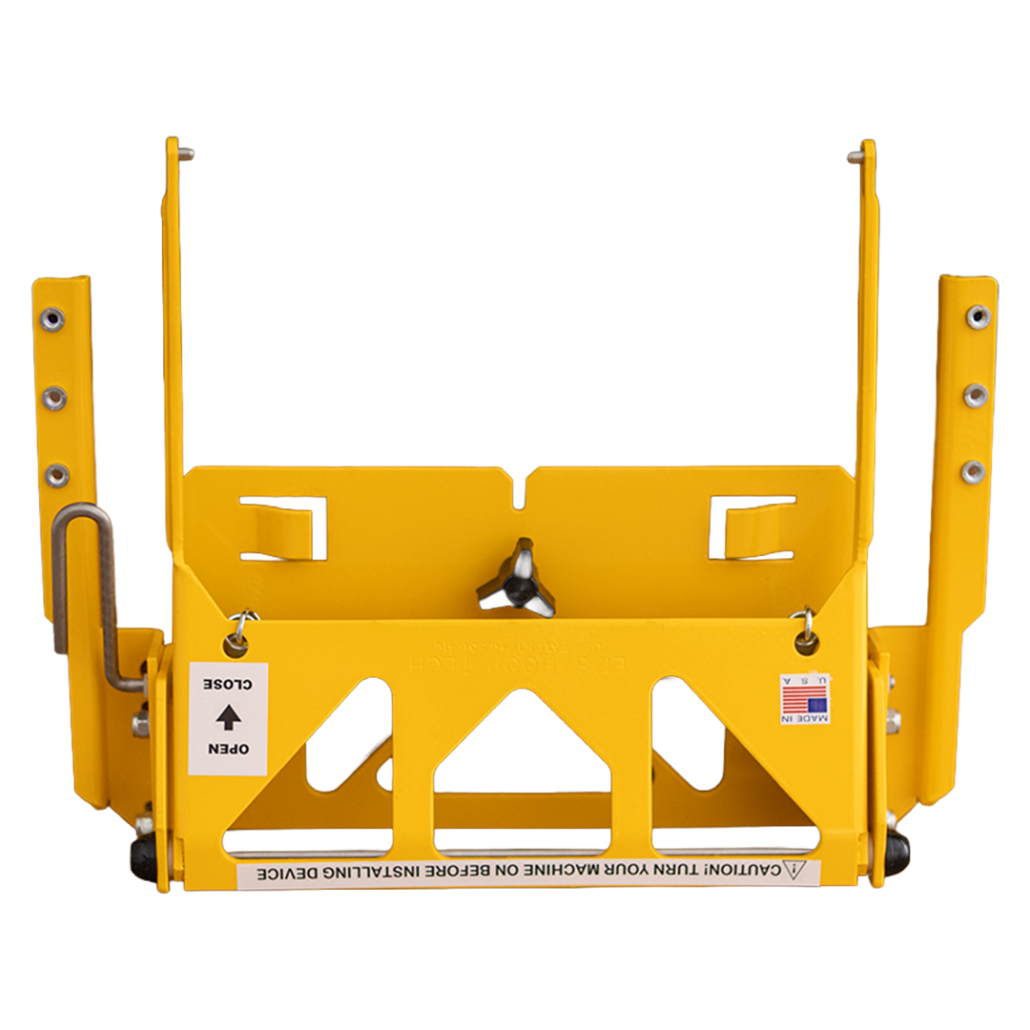

Inter-Changeable Tubular Clamping System mounts to your machine the same way that standard plastic hoops mount. So it’s easy to install and remove quickly. The spring loaded clamp is actuated by a single lever, making clamping easy. Stainless steel adapter arms are available to fit all major machine configurations. If you use plastic hoops now, we have a clamp to fit your machine.
ICTCS 2 Clamping Features
- Single lever opens, closes and locks the clamp.
- (7) interchangeable window sizes to choose from.
- Mounts to machine using tubular arms.
- All metal construction, powder coated aluminum & stainless steel.
- Changing window sized requires no tools and takes only seconds.
- Adapter arms are available for all major single & multi- head machines.
- The clamp automatically adjusts to different fabric thickness.
- Clamping action does not leave “hoop burns”
- Clamp stays on the machine while loading and unloading.
Sizes
The (6) Rectangular & (1) Round Window sizes come with a thin fabric and heavy duty top clamping frame. The largest window available for the ICTCS–2 is 7.5 wide x 6.0 deep.
Each window set for the ICTCS-2 includes a thin fabric & heavy duty top clamping frame.
Adapter Arms
Machine specific adapter arms are easily attached with 3 screws to the ICTCS Clamps. Each adapter arm set is designed to fit your machine type and sewing field size. (Brother adapter shown)
Clamping Systems Easy & Versatile
The ICTCS-2 is a quick on quick off tool that thousands of embroiders have in their bag of tricks. Clamping systems fill a need that the embroidery industry has for hooping things that just don’t fit well into traditional hoops. Clamping systems are easy to use, versatile, and limited only by the imagination of the embroiderer. The ICTCS-2 is a valuable tool if you have a single head or hundreds.
Large Volume Industrial Embroidery & Customization Market
The ICTCS-2 has been a popular favorite with the large volume industrial embroidery and customization market.
Hands Free
Both the ICTCS-1 & 2 can be converted to air actuated clamps by simply attaching the air cylinder assembly. This option allows the operator a “hands free” foot operated tool to use for high production or simply to save wear & tear on your hands.
The different window sizes make it easier to tailor the ICTCS 2 to work in many different sized sewing areas.
ICTCS Clamping Systems are not packaged as sets so that the buyer can tailor the window size choices to suite their product
3.5X6
The 3.5X6 window is great for smaller bag pockets and christmas stockings.
-3 piece window set
4.5X6
The 4.5×6 window is a popular window size for first time clamp owners. The medium sized sew field helps embroiderers sew on many different items.
-3 piece window size
5.5 INCH ROUND
The 5.5” Round is can be used like a 13 cm round but it works best for the back of cap. The round shape fits the crown of the cap and allows for a large sewing field.
-3 piece window set
5X5
The 5X5 window works well in shallow pockets and along the edges of bags. It is also popular for straps, dog collars, name tags and karate belts
-3 piece window set
6X6
The 6X6 window works great with backpacks, totes, and lunch bags,
-3 piece window set
7.5X3
this window is the shape of a license plate and is great for longer names and phrases.
-3 piece window set
7.5X6
This large window is popular for larger designs.
-3 piece window set
